Cutter Heads

High-performance multi-purpose cutter heads engineered for efficient soil excavation in sand, clay, and rock conditions.

Dredge Yard complete cutter unit Cutter head assembled and hoisted Finished Dredge Yard cutter heads ready for shipment Cutter head fitted on the cutter ladder
High Efficiency
Optimal cutting power
Durable Build
High-strength steel
Interchangeable
Replaceable teeth
Versatile
Multi-soil types
Global Support
Worldwide service

Cast, Built & Delivered

Every cutter head is cast in high-strength steel, machined and fitted with teeth in-house, then shipped worldwide — as a cutter head alone or a complete cutter unit.

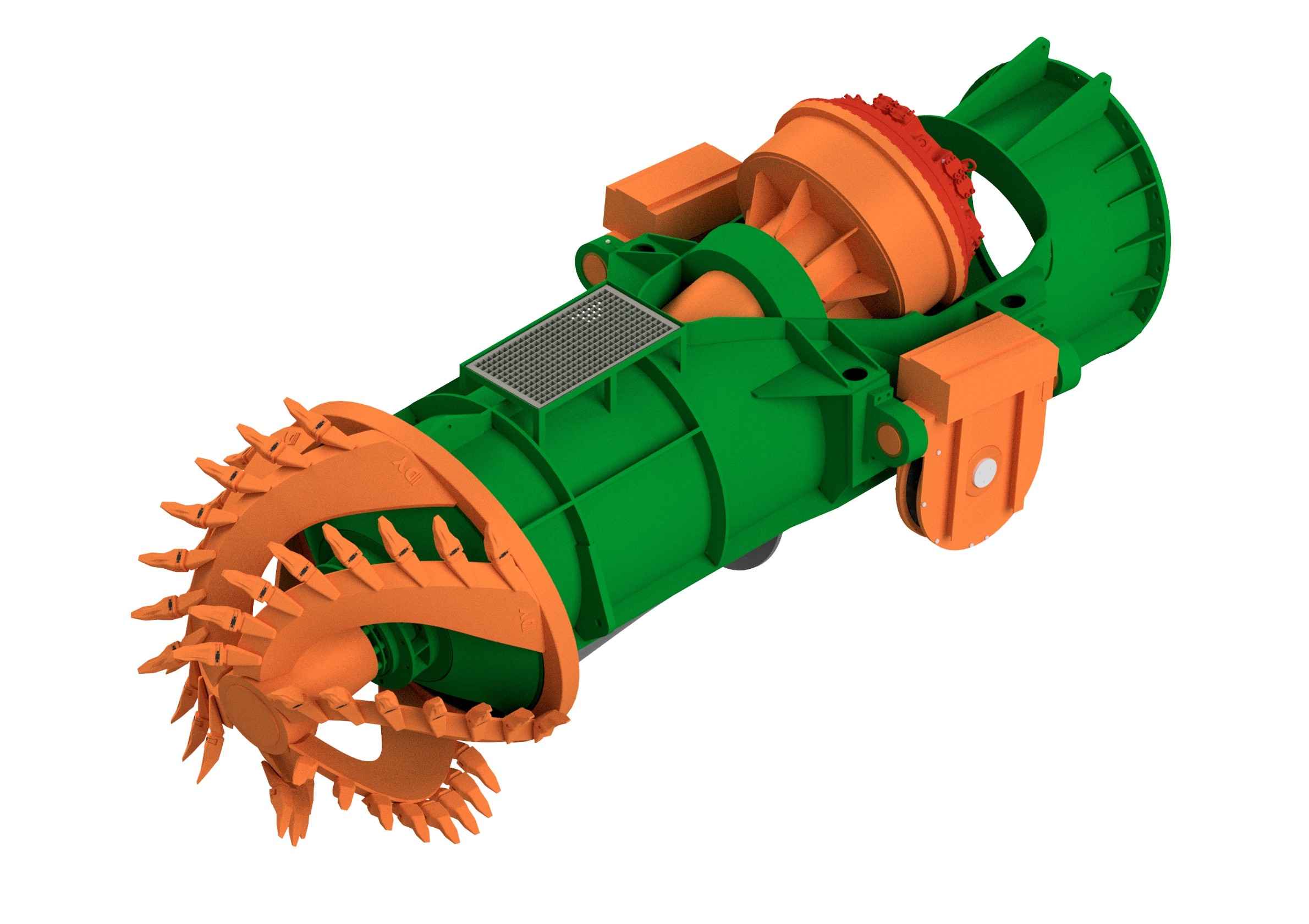

Dredge Yard complete cutter unit with gearbox and drive
Complete cutter unit
Cutter, gearbox & drive

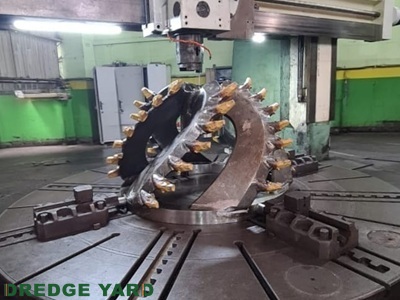

Cast and fabricated cutter head, machined and ready for teeth
Cast & fabricated
Machined and ready for teeth

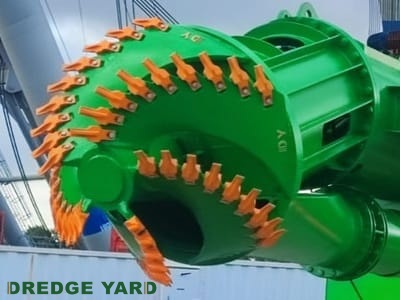

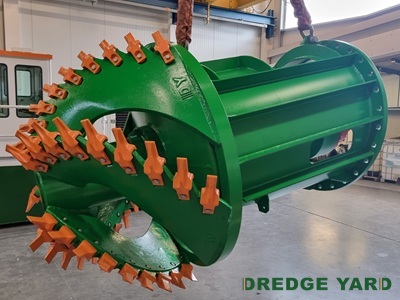

Cutter head assembled and hoisted with suction elbow
Assembled & hoisted
Cutter head with suction elbow

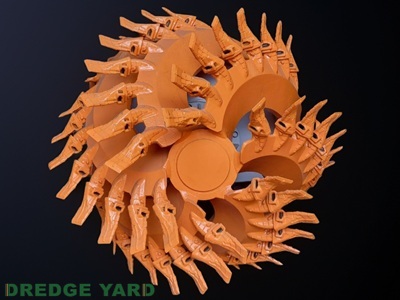

Finished Dredge Yard branded cutter heads with teeth fitted
Teeth fitted & branded
Ready for shipment
Cutter head fitted on the cutter ladder, ready to dredge
On the cutter ladder
Fitted and ready to dredge
Spare cutter crowns and wear parts
Spare crowns & wear parts
Cast and stocked to order

Multi-Purpose Cutter Heads

Dredge Yard offers a range of high-performance cutter heads designed to maximize the efficiency and productivity of dredging operations. Our cutter heads are engineered for durability and effectiveness, ensuring optimal cutting power and reduced wear and tear.

The crown-type design with interchangeable teeth allows for versatile operation across different soil conditions, from loose sand to compacted clay and even soft rock formations.

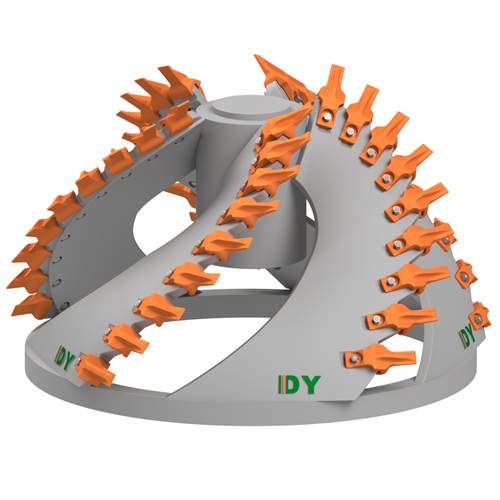

Cast and fabricated Dredge Yard cutter head

Key Features

Our cutter heads are built with premium materials and engineering excellence for demanding dredging operations.

High Cutting Efficiency

Designed to handle a variety of soil conditions, our cutter heads ensure efficient dredging with minimal downtime. Optimized cutting angles maximize material removal rates.

Durable Construction

Made from high-quality, high-strength steel materials, our cutter heads are built to withstand the toughest environments and prolonged use in abrasive conditions.

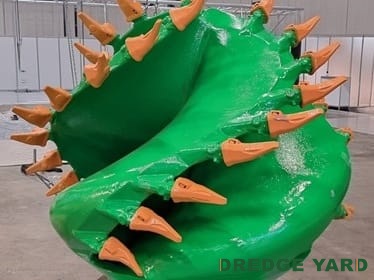

Interchangeable Teeth

Equipped with replaceable and interchangeable crown-type teeth, our cutter heads allow for easy maintenance and customization to specific dredging needs.

Versatility

Suitable for a wide range of dredging projects, from sandy soils to harder, more compact materials including clay and soft rock formations.

Finished Dredge Yard branded cutter heads

Benefits

Increased Productivity

High cutting power and efficiency lead to faster dredging operations and reduced project timelines.

Cost-Effective

Durable construction and replaceable teeth minimize maintenance costs and extend the lifespan of the cutter head.

Customizable

Our cutter heads can be customized to meet the specific requirements of your dredging project, ensuring optimal performance.

Cutter Head Range

Six crown sizes from 900 to 2160 mm, matched to the soil and cutter power — supplied as a cutter head alone or a complete cutter unit.

Sand & Clay

Soft / free-flowing

Open crown with fewer blades for maximum flow and production in sand, gravel and soft clay. Chisel-type teeth.

Multi-Purpose

Mixed ground

The all-rounder — balanced blades and teeth for varied soils and the widest operating window.

Rock

Hard / compacted

Closed crown with more blades and heavy pick-point teeth to cut hard and compacted rock.

Model Diameter (mm) Cutter Power (kW) Blades Teeth / Blade Total Teeth Action
CH300 900 mm 40 kW 5 5 25 Quote
CH400 1140 mm 60 kW 5 8 40 Quote
CH450 1510 mm 125 kW 5 9 45 Quote
CH500 1680 mm 185 kW 5 8 40 Quote
CH600 1970 mm 450 kW 6 8 48 Quote
CH650 2160 mm 700 kW 6 8 48 Quote

Larger diameters and powers available on request; tooth configuration is selected to suit the soil.

Applications

Our cutter heads are designed for versatile use across various dredging applications and soil conditions.

Sand and Gravel Extraction

Efficiently handle loose and medium-dense materials for sand mining and aggregate production operations.

Hard Soils and Rock

Robust construction and powerful cutting capabilities make our cutter heads ideal for challenging dredging conditions.

Maintenance Dredging

Ensure waterways, harbors, and channels are kept at required depths with efficient and reliable cutter heads.

Support and Services

Dredge Yard provides comprehensive support and services, from initial consultation and design to installation, testing, and ongoing maintenance. Our team of experts is dedicated to ensuring your cutter heads perform at their best throughout the lifespan of your dredging project.

Explore our range of cutter heads and discover the ideal solution for your dredging needs. Contact Dredge Yard today to learn more about our products and services.

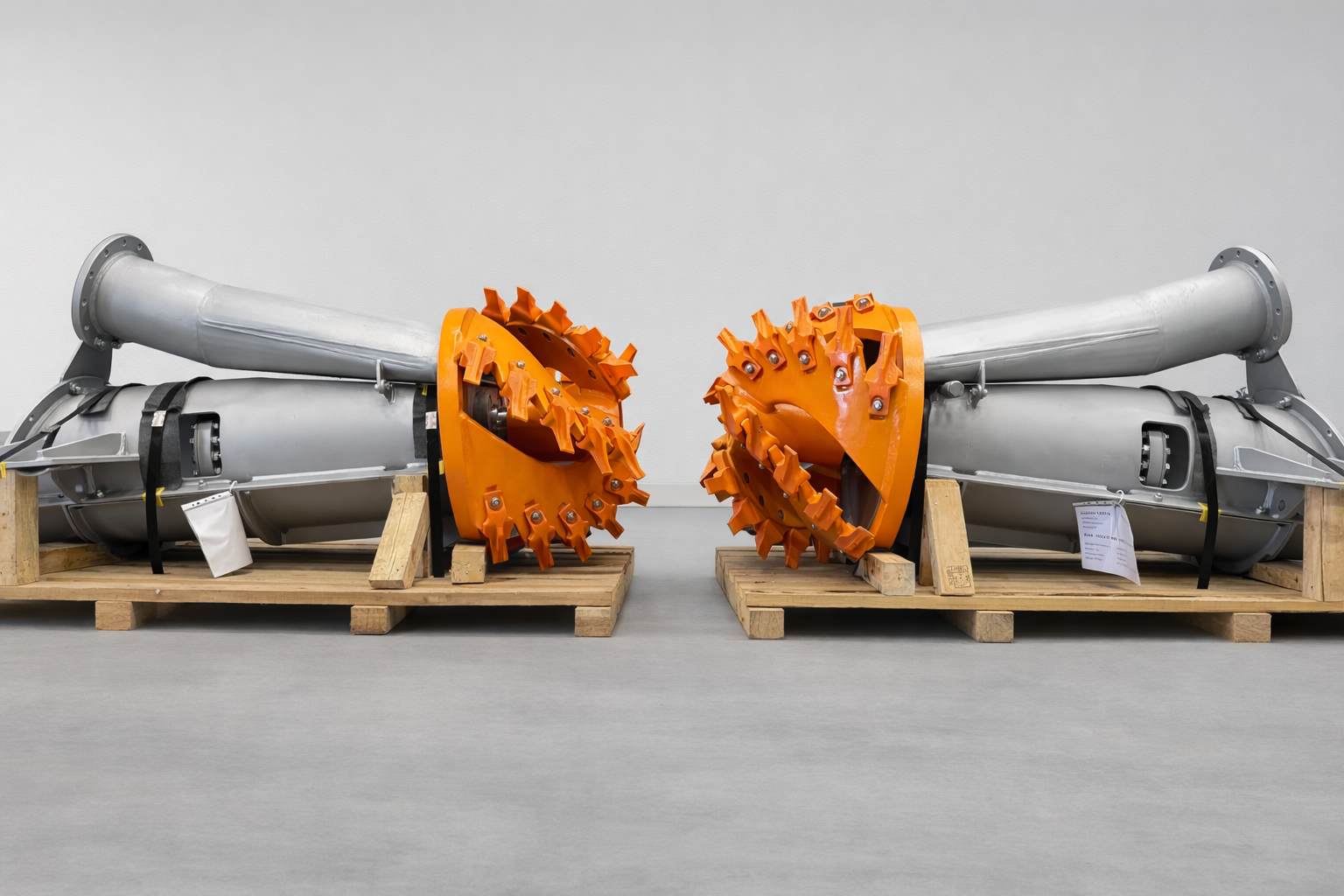

Dredge Yard cutter head packed and ready for shipment

Ready to Discuss Your Cutter Head Requirements?

Our team of dredging experts is ready to help you select the right cutter head for your project. Get in touch for a customized quote.
