Dredge Pumps

High-performance slurry pumps engineered for maximum efficiency and durability in demanding dredging operations. Available in sizes from DYP250 to DYP850.

Dredge Yard Dredge Pump Dredge pump Dredge pump Dredge pump Dredge pump Dredge pump
Wear Resistant
High-chrome materials
High Efficiency
Optimized hydraulics
Interchangeable
Easy spare parts
Customizable
Project-specific
Global Support
Worldwide service

From Casting to Delivery

Every DYP pump is cast, machined, assembled and tested in-house, then finished and packed for shipment anywhere in the world.

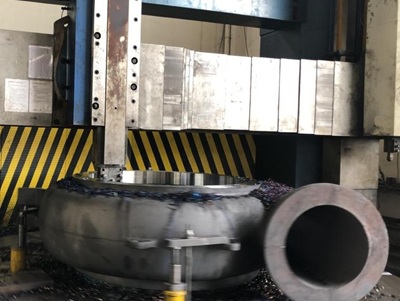

Pump impeller machined to tolerance on the vertical lathe
Impeller machined to tolerance
On the vertical lathe

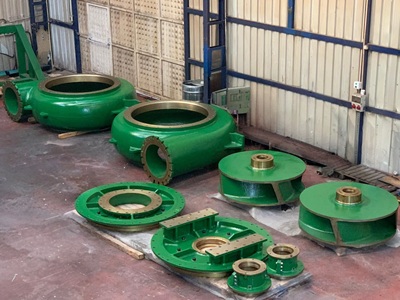

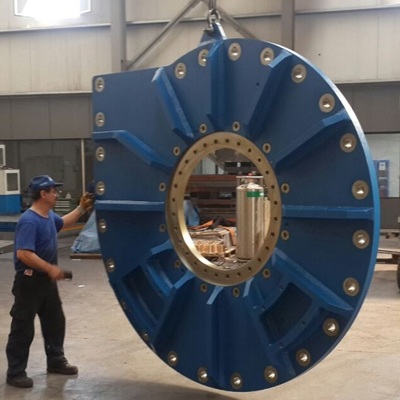

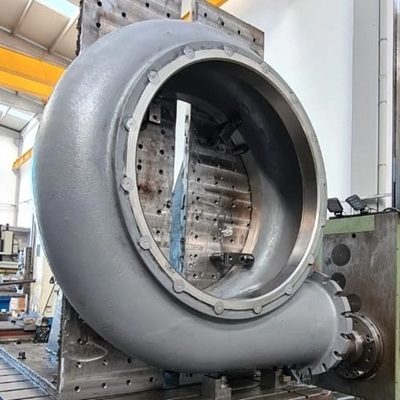

Replaceable wear parts, liners and covers in the workshop
Replaceable wear parts
Liners, covers & impellers
Multiple dredge pump units in build
Built in batches
Multiple units in build

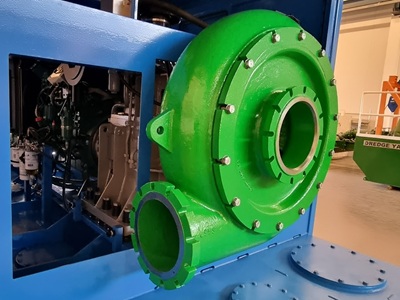

Finished Dredge Yard dredge pump in the workshop
Finished pump
In our workshop

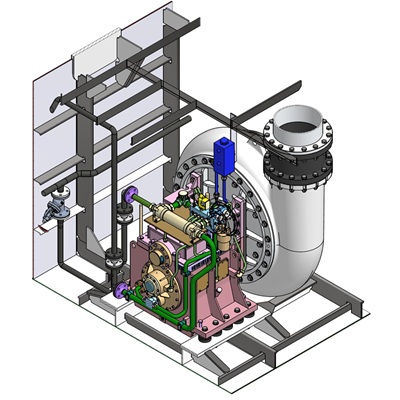

Pump-and-drive set on the cutter ladder
Pump-and-drive set
On the cutter ladder
Dredge pump secured in a shipping container for export
Shipped worldwide
Secured in the container

What is a Dredge Pump?

A dredge pump is a specialized centrifugal pump designed to transport abrasive slurry mixtures containing sand, gravel, clay, and other sediments. It is the heart of any dredging operation, responsible for moving material from the seabed or riverbed through the suction pipe to the discharge location.

Unlike standard water pumps, dredge pumps are engineered to handle high concentrations of solids while maintaining efficiency. They feature heavy-duty construction with wear-resistant materials to withstand the abrasive nature of dredged materials.

The performance of a dredge pump directly impacts the productivity and cost-effectiveness of the entire dredging operation, making it one of the most critical components to select correctly.

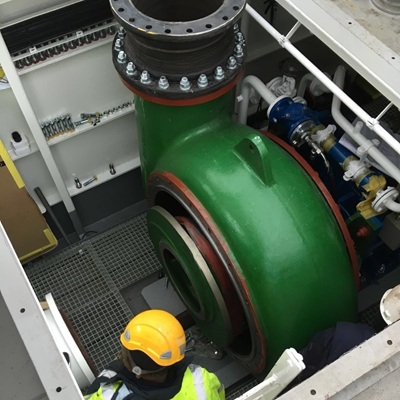

Dredge Yard dredge pump installed on a cutter suction dredger

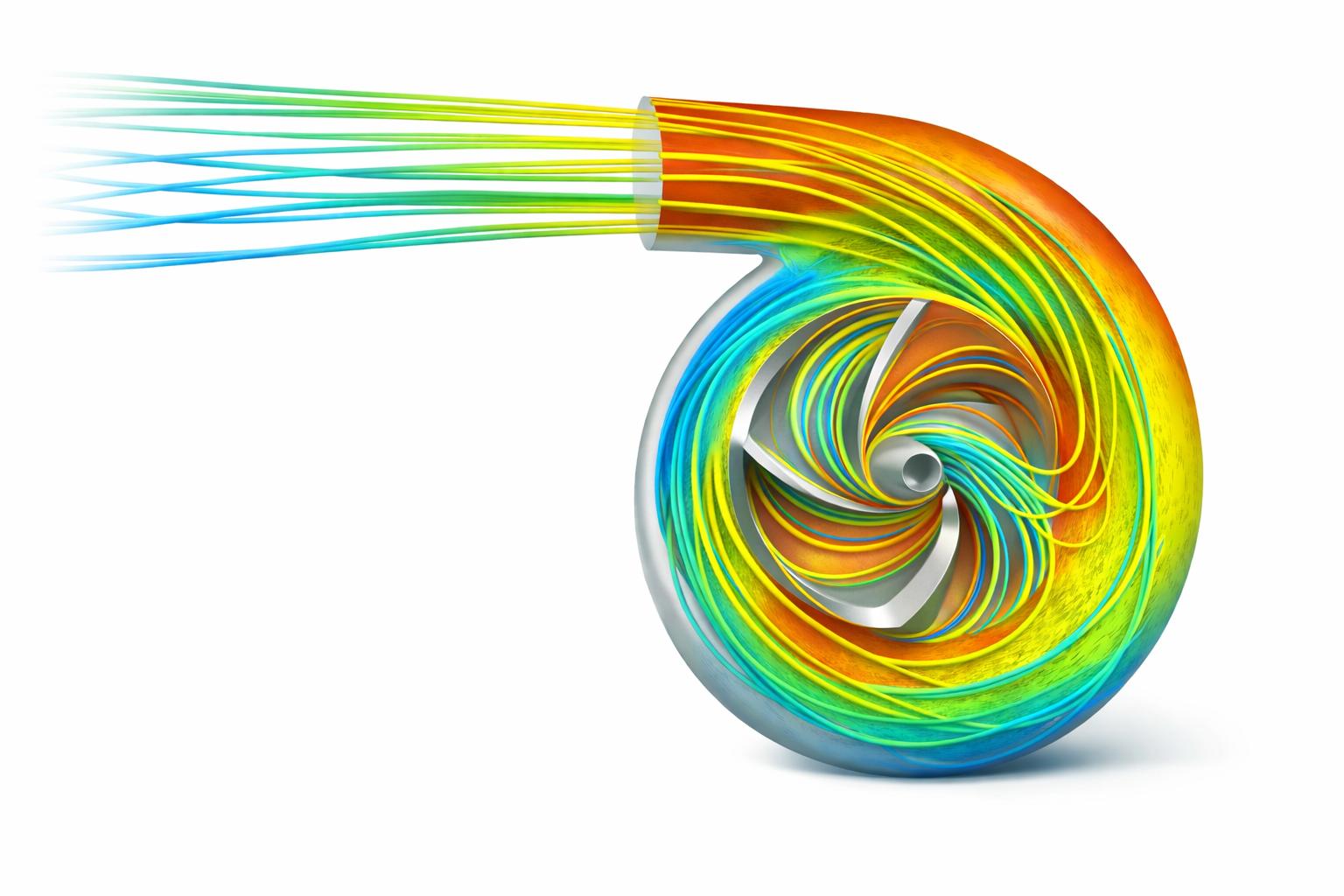

Dredge Pump Working Principle

How Do Dredge Pumps Work?

A dredge pump operates on the centrifugal principle. The pump consists of a rotating impeller housed within a volute casing. As the impeller spins at high speed, it creates a vacuum at the suction inlet, drawing in the slurry mixture.

The impeller's curved vanes accelerate the slurry outward, converting rotational energy into pressure. This pressure forces the material through the discharge outlet and along the pipeline to the designated disposal area.

1
Suction
Material enters through the suction pipe via vacuum created by impeller rotation
2
Acceleration
Impeller vanes accelerate the slurry, adding kinetic energy
3
Discharge
Volute casing converts velocity to pressure, pushing material through discharge pipe

Our Dredge Pump Range

We offer a complete range of dredge pumps from DYP250 to DYP850, suitable for all dredging applications from small-scale operations to major land reclamation projects.

Model Suction Discharge Spherical Passage Action
DYP250 260 mm 260 mm 125 mm Quote
DYP300 300 mm 250 mm 150 mm Quote
DYP350 350 mm 300 mm 175 mm Quote
DYP400 385 mm 385 mm 200 mm Quote
DYP450 450 mm 400 mm 230 mm Quote
DYP500 500 mm 450 mm 250 mm Quote
DYP550 550 mm 500 mm 275 mm Quote
DYP600 600 mm 550 mm 300 mm Quote
DYP650 650 mm 600 mm 325 mm Quote
DYP700 700 mm 650 mm 350 mm Quote
DYP750 750 mm 700 mm 375 mm Quote
DYP800 800 mm 750 mm 400 mm Quote
DYP850 850 mm 800 mm 425 mm Quote

Head vs Flow — Operating Envelopes

Each model's hydraulic envelope across the DYP250–DYP850 range. Higher heads and flows are achievable; continuous duty is matched per project for economical wear life.

Dredge pump head vs flow operating envelopes, DYP250 to DYP850

Need a custom pump size or configuration?

Discuss Custom Requirements

Technical Specifications

Our dredge pumps are built to the highest standards with premium materials and precision engineering.

Construction

Pump Type Single-stage centrifugal
Impeller Design Double curved vanes
Vane Options 3 or 5 vanes
Casing Type Volute, or split design
Shaft Seal Mechanical or gland packing

Materials

Impeller High chrome (27% Cr)
Wear Plates High chrome, Ni-Hard
Casing Ductile iron / High chrome
Shaft High-strength steel
Optional Lining Rubber lined available

Drive Options

Direct Drive Hydraulic or Electric motor
Gearbox Drive For speed reduction
Hydraulic Drive Variable speed control
VFD Compatible Electric motor options

Performance Range

Size Range 250mm to 850mm
Flow Rate Up to 12,000 m³/hr
Head Up to 80 meters
Solids Handling Over 40% concentration

Applications

Our dredge pumps are used in a wide range of dredging and slurry transport applications worldwide.

Cutter Suction Dredgers

Primary pump for CSD operations, handling sand, clay, and gravel

Booster Stations

Extending pumping distances for long-distance slurry transport

Sand Mining

High-volume sand extraction and processing operations

Land Reclamation

Large-scale material transport for reclamation projects

Why Choose Dredge Yard Pumps?

Hydraulic Design Optimized for Dredging

Our double curved impeller design delivers superior efficiency specifically for slurry transport, reducing energy consumption and operational costs.

Premium Wear-Resistant Materials

High-chrome alloys and Ni-Hard components ensure extended service life even in the most abrasive conditions.

Global Spare Parts Availability

With offices across Europe, the Middle East, and Asia, we ensure fast delivery of spare parts worldwide.

Custom Engineering Support

Our engineering team can customize pump specifications to match your exact project requirements and operating conditions.

Quick Facts

Pump Models Available 13
Size Range 250-850mm
Max Flow Rate 12,000 m³/hr
Global Offices 4
