Dredge Ball Joints

Flexible pipeline connections that absorb movement while maintaining a secure seal. Essential for floating pipelines and dynamic dredging operations.

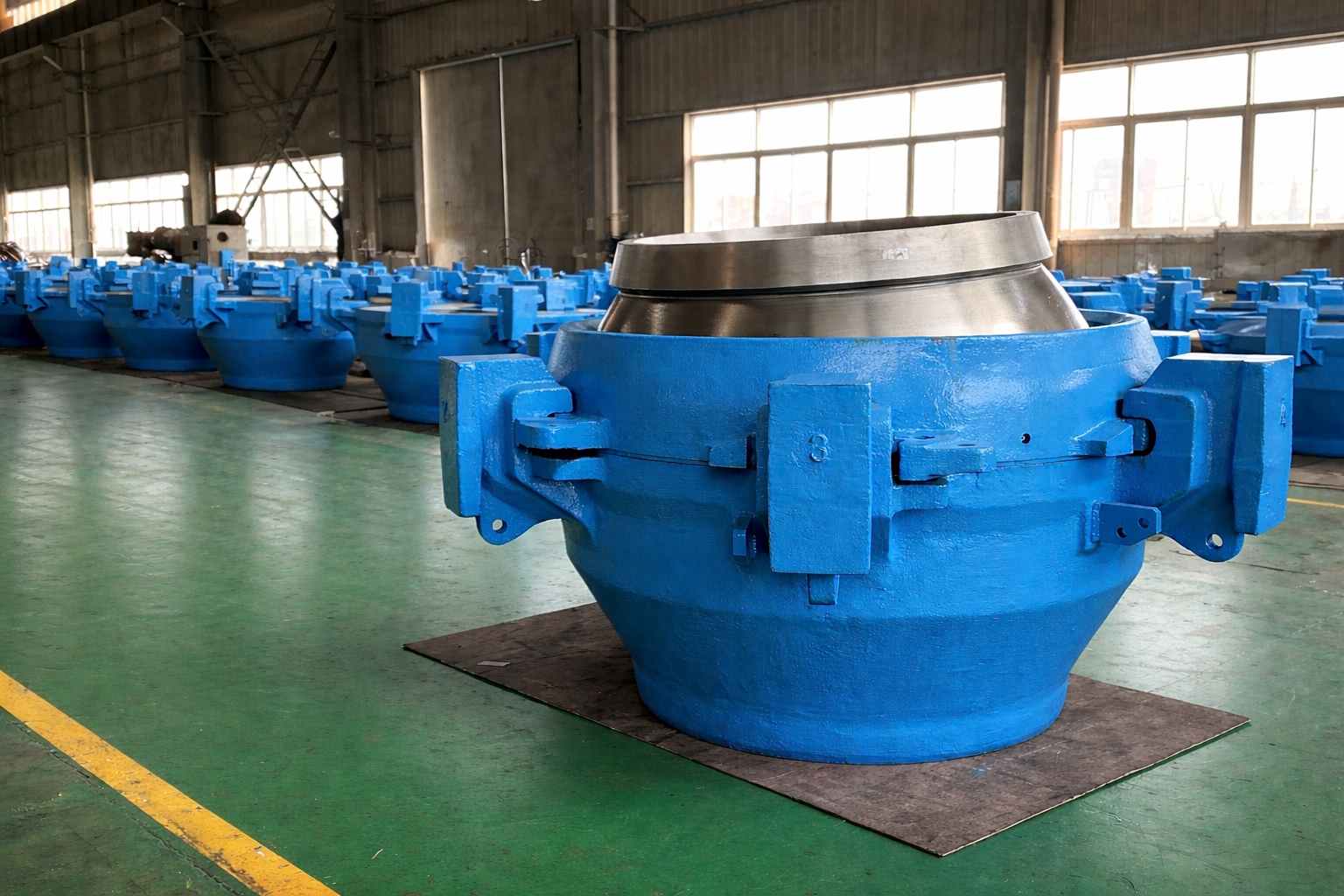

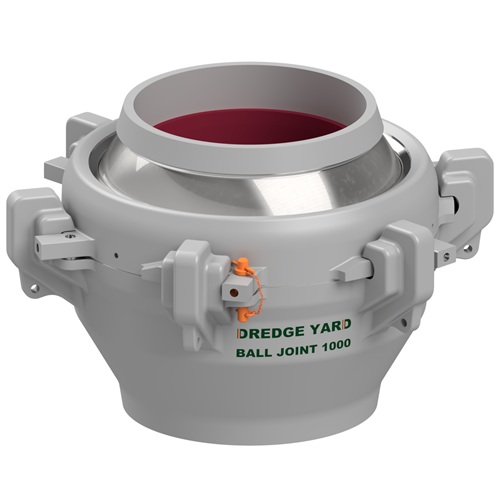

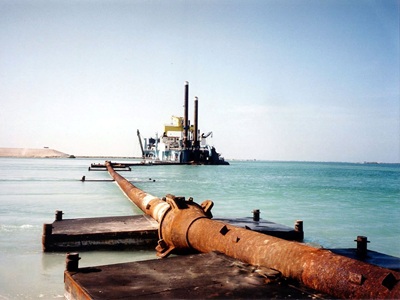

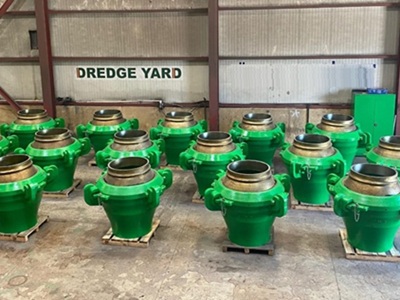

Dredge ball joint DN1000 on the assembly line Ball joints across the full size range Production batch of ball joints, ready to ship Ball joint on a floating discharge pipeline
Up to 18°
Tilting angle
40 Bar
Pressure rated
300-1200mm
Size range
Leak-Free
Secure sealing
Global Support
Worldwide service

Tested, Proven & Supported

Every ball joint is cast, machined and pressure-tested in-house, proven in service worldwide, and backed by a full range of spares and wear parts.

Ball joint on the dynamic test rig under working pressure
Dynamic test rig
Articulation under working pressure

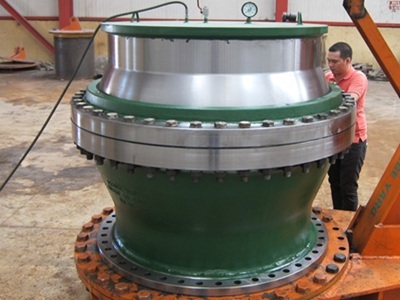

Fabricated ball joint on the hydrostatic test, instrumented
Hydrostatic test
Fabricated joint, instrumented

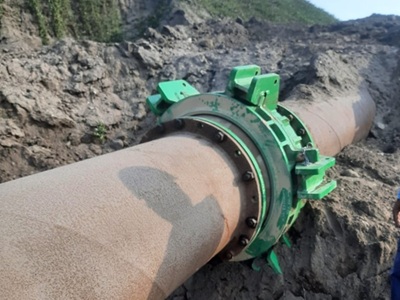

Fabricated ball joint on a land pipeline in the field
Land pipeline connection
Fabricated joint in the field
Ball joints crated and ready for dispatch
Ready for dispatch
Crated & shipped worldwide
Replaceable ball joint liners
Replaceable liners
Ductile manganese / hard chromium iron
Precision-ground polished ball joint balls
Precision-ground balls
Carbon or stainless steel

What is a Dredge Ball Joint?

A dredge ball joint is a specialized pipeline connection that allows angular movement between pipe sections while maintaining a pressure-tight seal. It consists of a ball and socket assembly with high-quality seals that accommodate the dynamic movements of floating pipelines.

Ball joints are essential components in dredging operations where pipelines must flex with wave action, tidal changes, and vessel movement. Without proper ball joints, rigid pipeline connections would experience excessive stress leading to fatigue failure and leaks.

Our ball joints are engineered for the demanding marine environment, featuring corrosion-resistant materials and long-lasting seals designed for continuous operation in saltwater conditions.

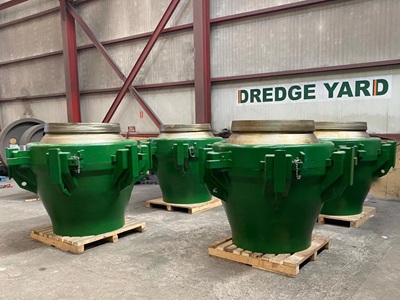

Finished Dredge Yard ball joints on pallets

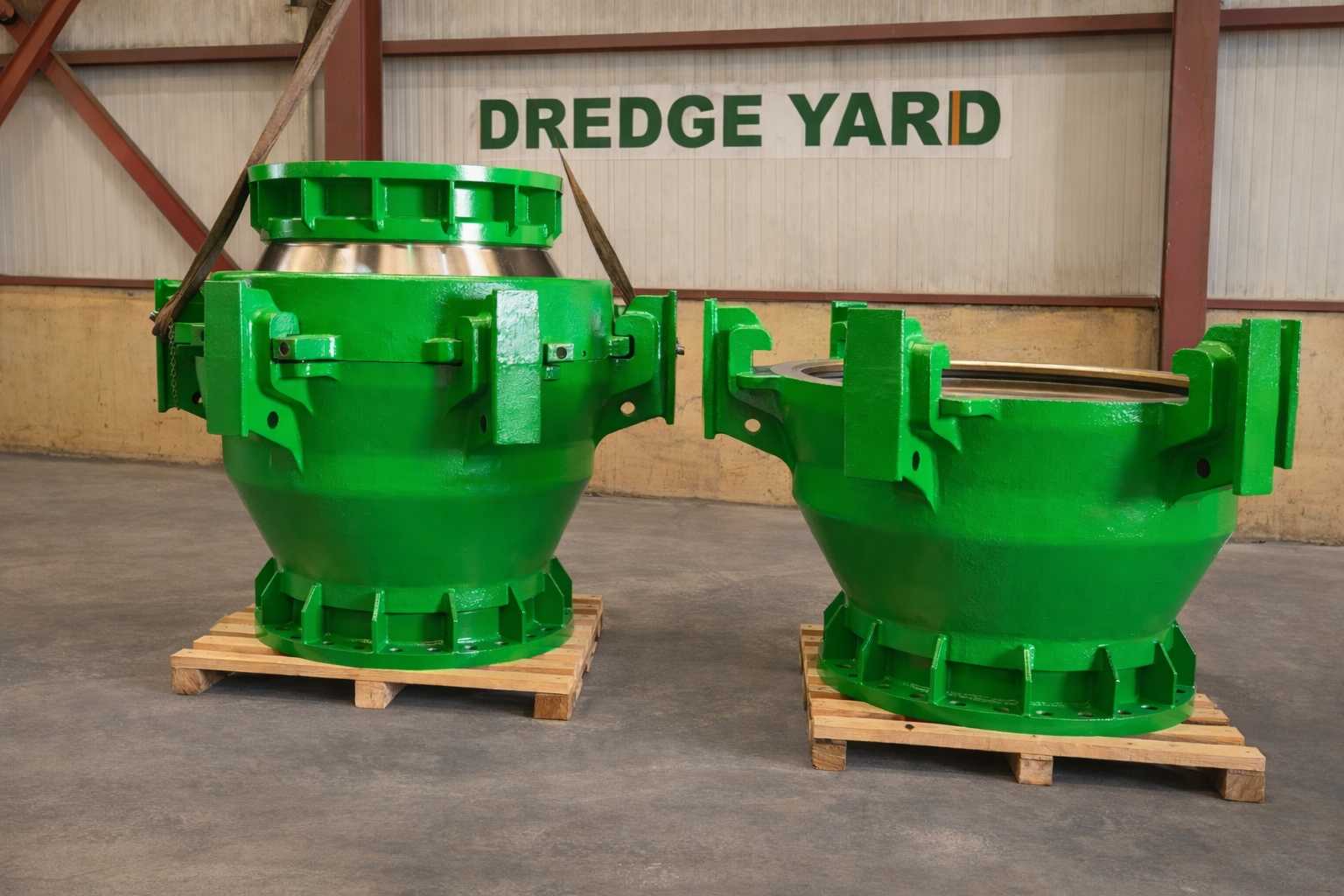

Dredge Yard ball joint assembly and machining

How Do Ball Joints Work?

A ball joint works on a simple but effective principle: a spherical ball rotates within a matching socket, allowing angular movement in any direction while the slurry continues to flow through the center passage.

High-quality rubber or polyurethane seals maintain pressure integrity throughout the full range of movement. The joint can articulate up to 18 degrees from center (22.5° optional) while handling the full operating pressure of the pipeline.

1
Angular Movement
Ball rotates within socket allowing multi-directional flexibility
2
Seal Contact
Elastomer seals maintain constant contact with ball surface
3
Flow Continuity
Full bore design maintains slurry flow without restriction

Ball Joint Size Range

We offer ball joints in a complete range of sizes to match your pipeline diameter requirements.

Nominal Size Angular Movement Max Pressure Typical Application Action
300 mm (12") 15° 20 bar CSD 300 Quote
400 mm (16") 15° 20 bar CSD 400 Quote
450 mm (18") 15° 20 bar CSD 450 Quote
500 mm (20") 15° 20 bar CSD 500 Quote
600 mm (24") 15° 20 bar CSD 600 Quote
650 mm (26") 15° 25 bar CSD 650 Quote
700-1200 mm 15° 40 bar Large CSD, TSHD Quote

Need a custom size or higher pressure rating?

Discuss Custom Requirements

Technical Specifications

Our ball joints are built with premium materials for reliable performance in marine dredging environments.

Construction

Design Type Ball and socket
Angular Movement Up to 18 degrees (22.5° optional)
Bore Type Full bore
Connection Flanged / Quick connect

Materials

Ball Manganese-alloy cast iron
Case / Gland Manganese / Cr-Ni-Mo cast iron
Seals NBR 70
Coating Epoxy / Marine grade

Performance

Max Pressure 40 bar (standard)
Temperature Range -10°C to +60°C
Media Slurry, sand, water
Environment Marine / Saltwater

Features

Seal Replacement Field serviceable
Lifting Points Integrated lugs
Grease Points Standard fitment
Movement Lock Optional

Applications

Ball joints are essential wherever pipeline flexibility is required in dredging operations.

Floating Pipelines

Connecting floating pipe sections that move with waves and currents

Shore Connections

Flexible connection between floating and fixed shore pipelines

Booster Connections

Inlet and outlet connections at booster stations

Ladder Connections

Flexible joint at dredger ladder hinge point

Why Choose Dredge Yard Ball Joints?

Precision Engineering

Tight tolerances ensure smooth movement and effective sealing throughout the full range of motion.

Long-Life Seals

Premium NBR and polyurethane seals designed for extended service life in abrasive slurry applications.

Field Serviceable

Seals can be replaced on-site without specialized equipment, minimizing downtime.

Complete Size Range

From 300mm to 1200mm, we have ball joints to match every pipeline size in your dredging operation.

Quick Facts

Size Range 300-1200mm
Angular Movement Up to 18°
Max Pressure 40 bar
Seal Types 2+
