Dredge Components

Bow Couplings

A hydraulic click-in ball coupling that lets a hopper dredger pump its load ashore — locked on or released in minutes, even in sand or dirt. Supplied as a complete bow installation.

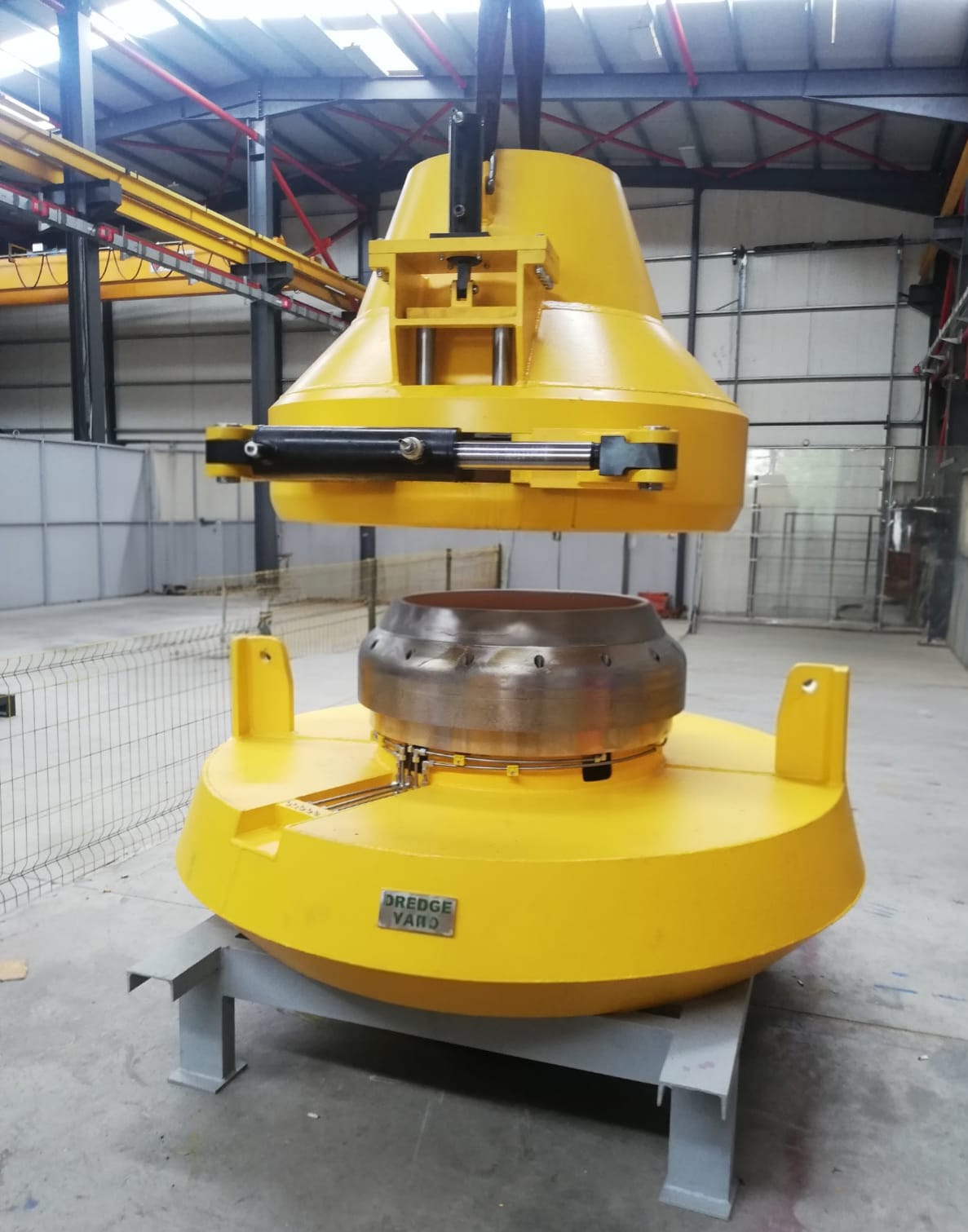

Dredge Yard Bow Coupling Bow coupling Bow coupling
Quick Connect
Fast operation
High Pressure
Up to 30 bar
Fail-Safe
Secure locking
Corrosion Resistant
Marine grade
Global Support
Worldwide service

From the Workshop to the Bow

Click-in ball couplings and steel bow frames, built and actuation-tested in-house, then fitted to the dredger's bow and pumping ashore.

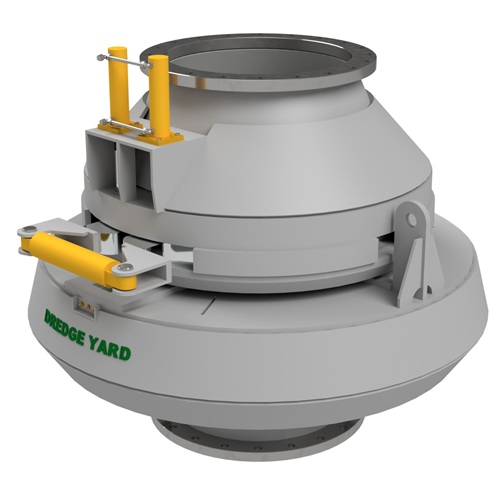

Click-in ball coupling, male side
Click-in ball
Machined mating face

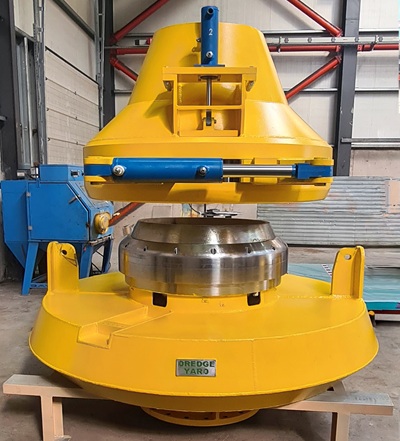

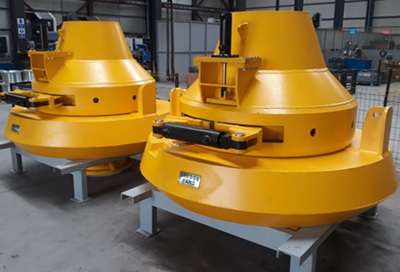

Hydraulic click-in bow coupling
Hydraulic coupling
Ready for shipment

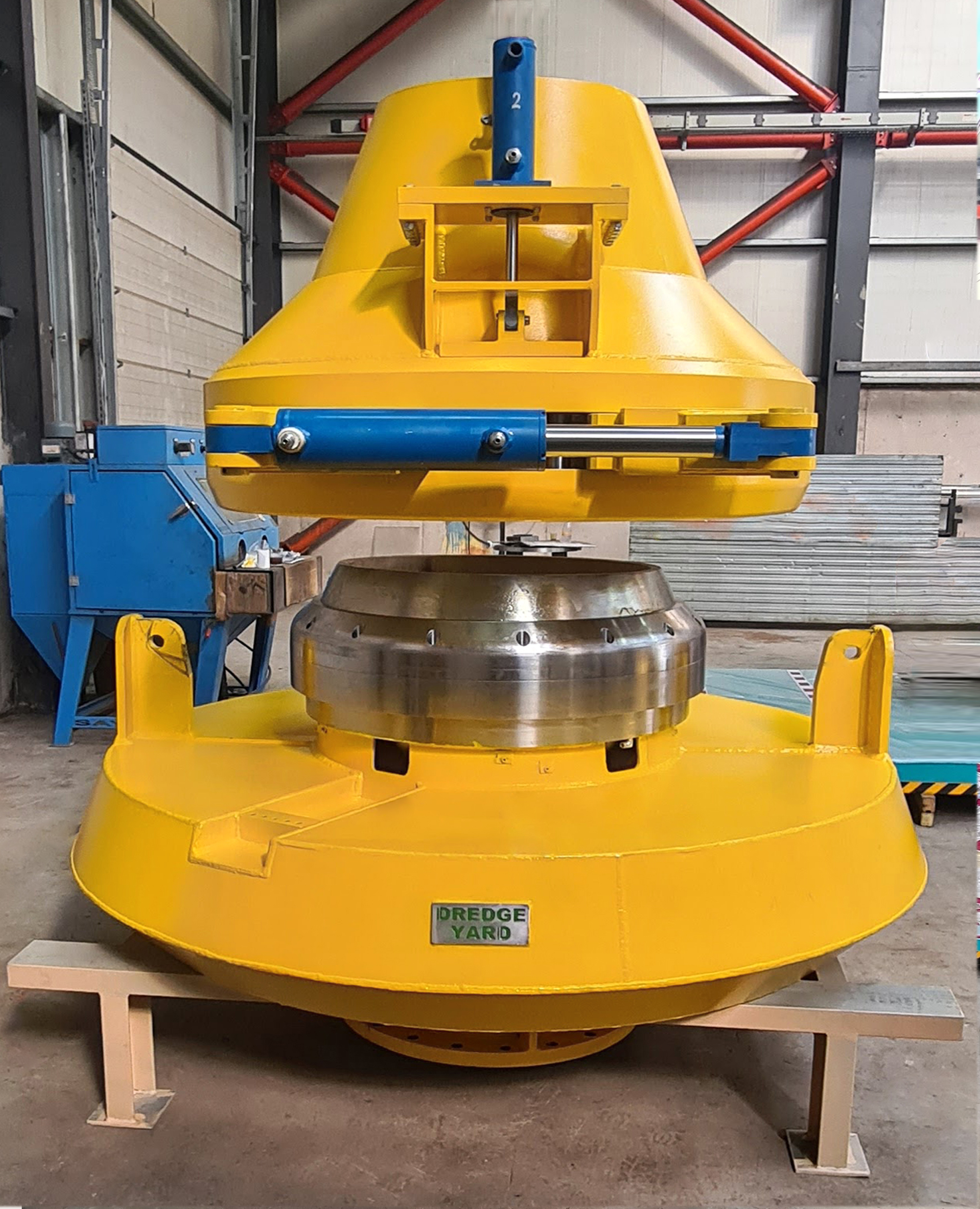

Bow coupling actuation test
Actuation test
Lock & release checked

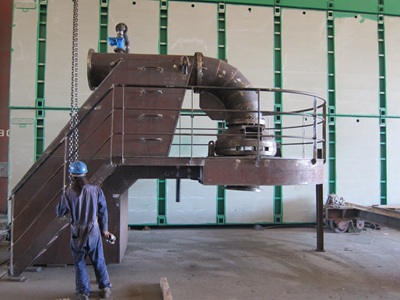

Steel bow frames on trailer
Steel bow frames
Shipped to the vessel

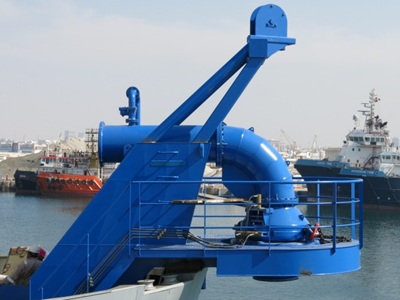

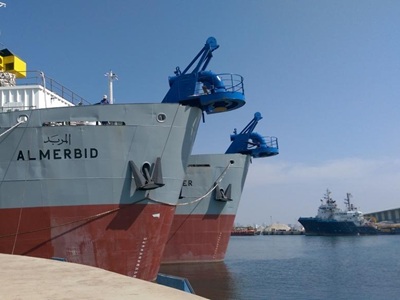

Bow coupling installed on the vessel bow
Installed on the bow
Pumping ashore

What is a Bow Coupling?

A bow coupling lets a trailing suction hopper dredger pump its hopper load ashore instead of dumping at sea. The floating discharge pipeline is lifted to the bow and locked on with a hydraulically operated click-in ball joint — connected or released in minutes, even in sand or dirt.

It is supplied as a complete bow installation: a click-in ball coupling (male and female), a steel bow frame mounted on the vessel's fore trestle, hydraulic locking cylinders, a hoisting winch and upper roll to handle the pipeline, a dredge-line bend, and the hydraulic power pack, control block and operating panel.

The click-in ball joint holds the pressure boundary through pumping while tolerating the dirty conditions of beach and shore work, so a small crew can make and break the connection quickly and safely — with an optional rainbow nozzle for rainbow discharge.

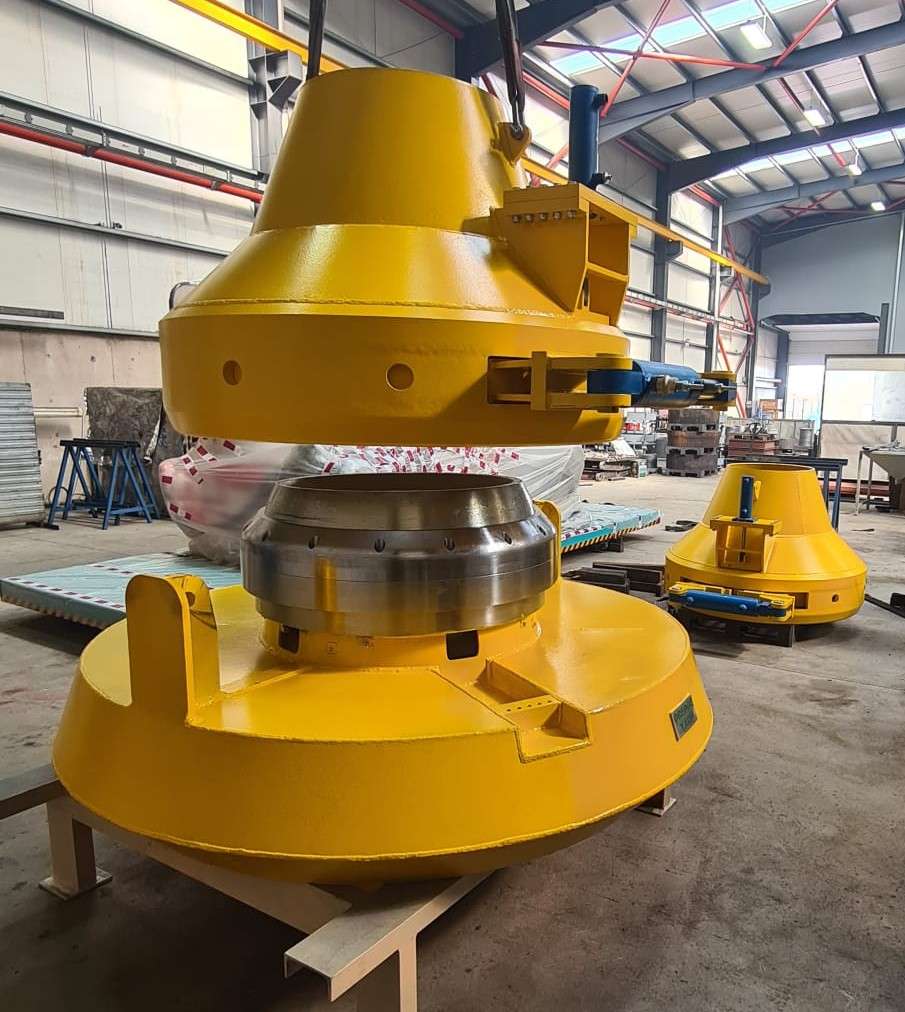

Bow Coupling System
Bow Coupling Working Principle

How Do Bow Couplings Work?

The female seat is mounted on the steel bow frame at the vessel's bow, and the male ball cone is fitted to the floating discharge pipeline. The hoisting winch lifts the pipeline to the bow and guides the ball cone into the seat.

Hydraulic cylinders then click the ball joint in and lock it pressure-tight. Sand or dirt does not interfere with the mechanism, so the dredger can pump its hopper load ashore — or rainbow via the optional nozzle — and release again just as quickly for a fast turnaround.

1
Lift & Guide
The hoisting winch lifts the pipeline and guides the ball cone into the seat
2
Click-In Lock
Hydraulic cylinders click the ball joint in and lock it pressure-tight
3
Pump & Release
Pump ashore or rainbow, then release just as fast for turnaround

Bow Coupling Size Range

We offer bow couplings sized to match hopper dredger discharge pipe requirements.

Nominal Size Pressure Locking Type Typical Application Action
350 mm (14") 30 bar Hydraulic Small TSHD Quote
400 mm (16") 30 bar Hydraulic Small TSHD Quote
500 mm (20") 30 bar Hydraulic Small-medium TSHD Quote
600 mm (24") 30 bar Hydraulic Medium TSHD Quote
700 mm (28") 30 bar Hydraulic Medium-large TSHD Quote
800 mm (32") 30 bar Hydraulic Large TSHD Quote
900 mm (36") 30 bar Hydraulic Large TSHD Quote
1000 mm (40") 30 bar Hydraulic Mega TSHD Quote
1100 mm (44") 30 bar Hydraulic Mega TSHD Quote

Rated up to 30 bar. Pipe size, bow-frame layout and configuration are matched to the vessel's discharge line.

Need a custom size or special configuration?

Discuss Custom Requirements

Technical Specifications

Our bow couplings are built with premium materials for reliable performance in demanding marine environments.

Construction

Design Type Hydraulic click-in ball joint
Locking System Hydraulic actuated
Bore Type Full bore
Mounting Steel bow frame

Materials

Frame & body High-tensile steel
Locking Elements High-strength steel
Ball & seat Wear-resistant, machined
Finish Marine protective coating

Performance

Working Pressure Up to 30 bar
Connection Click-in, in minutes
Operation Remote hydraulic
Media Slurry, sand, water

Features

Hoisting Winch Integrated
Fail-Safe Lock Standard
Rainbow Nozzle Optional
Operation Remote panel

Applications

Bow couplings are essential components for hopper dredger discharge operations.

Shore Discharge

Connection to shore pipelines for land reclamation projects

Rainbow Discharge

Connection point for rainbow discharge nozzle systems

Floating Pipeline

Connection between vessel and floating discharge line

Why Choose Dredge Yard Bow Couplings?

Fail-Safe Design

Multiple safety interlocks ensure the coupling cannot disconnect under pressure or during operation.

Quick Operation

Hydraulic actuation connects or releases the floating pipeline in minutes, minimizing vessel downtime.

Marine Grade Construction

Corrosion-resistant materials and coatings ensure long service life in saltwater environments.

Complete Bow Package

Supplied as a full installation: click-in coupling, steel bow frame, hoisting winch, hydraulics, controls and an optional rainbow nozzle.

Quick Facts

Size Range 350-1100mm
Max Pressure 30 bar
Connection Minutes
Safety Features Fail-safe

Ready to Discuss Your Bow Coupling Requirements?

Our team is ready to help you select the right bow coupling for your hopper dredger. Get in touch for a customized quote.
